January 5, 2006

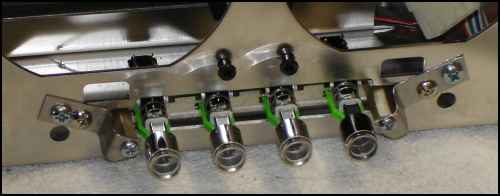

Now that the switch is mounted, it's time to
layout the wiring. Also, a rough plan for the
rest of the mod.

So it doesn't seem so overwhelming.

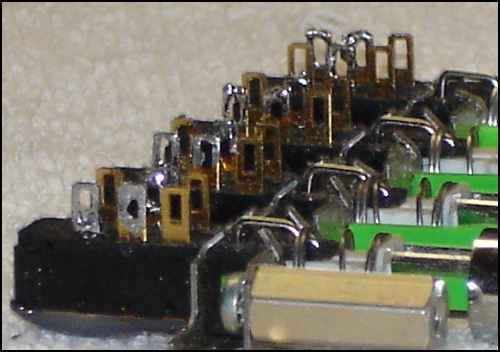

One one side of the switch
are contacts we won't use.

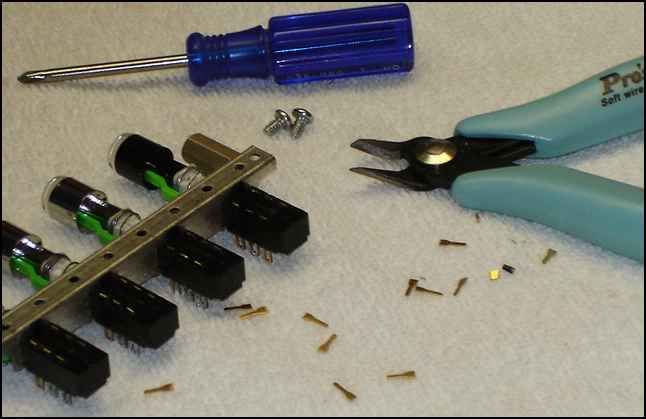

Nothing to it, just clip'em off.

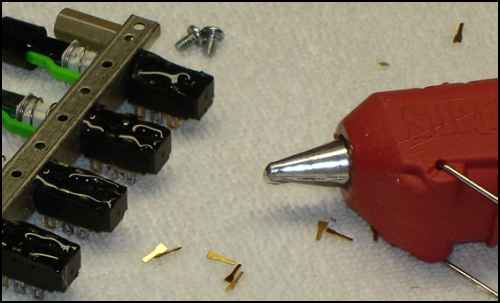

And insulate with some hot glue.

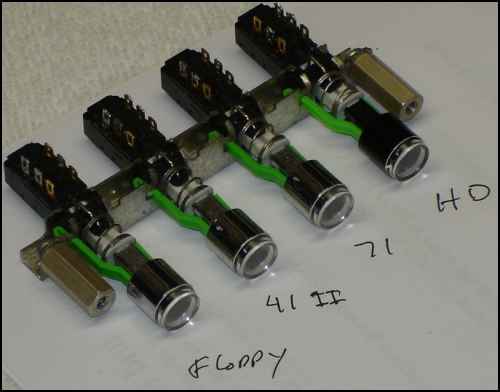

Switch assignment.
Seems like a logical arrangement to me.

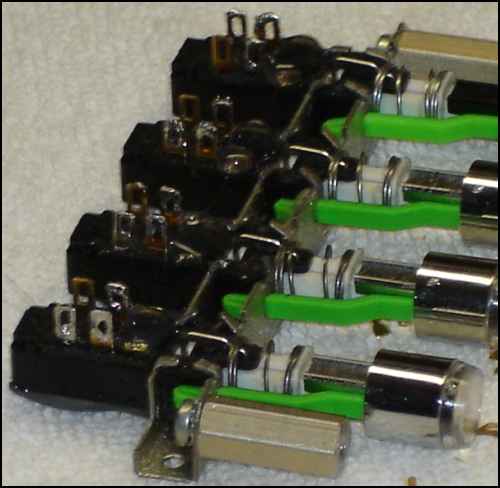

Center lug is common.

The left lug is connected when the
switch is on, and that's just what we need.








With the four lugs left, two voltages per
switch can be controlled; 12VDC and 5VDC.
