October 9, 2005

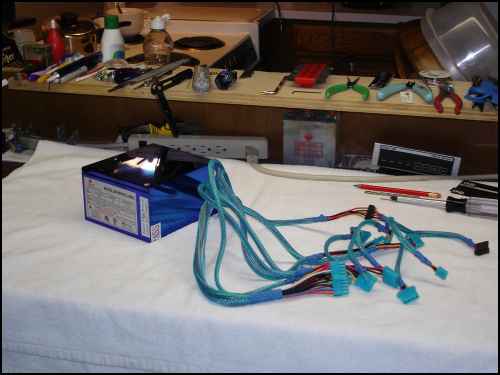

Here's the new power supply Alan bought
to power all the hardware except the FD2000;
which uses 9VDC.

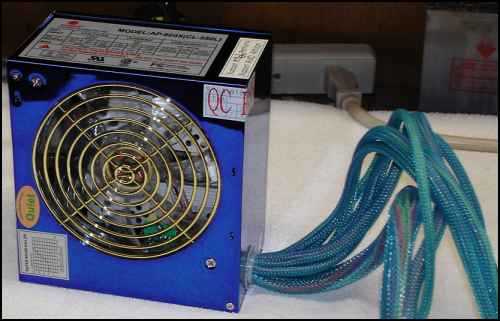

A closeup shot.

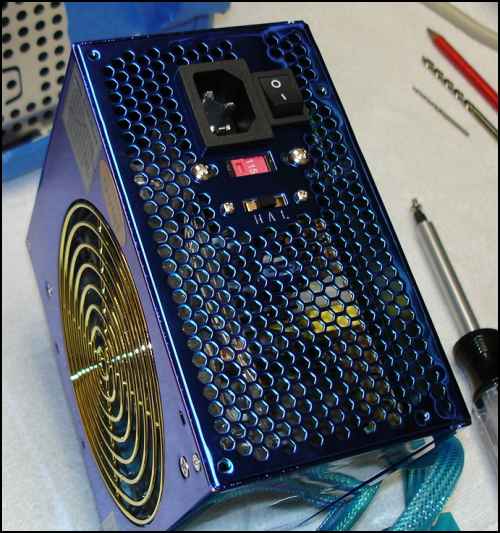

It has a switch to control
the fan speed; High/Auto/Low.

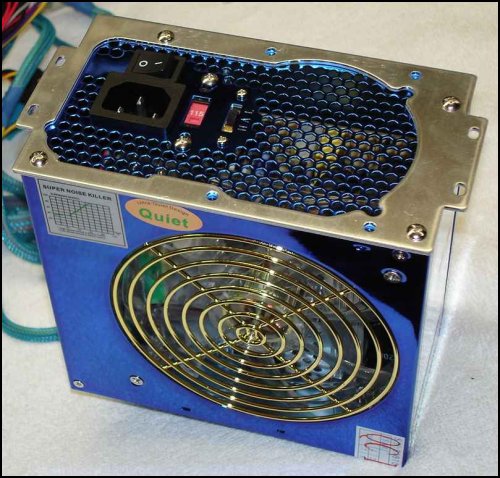

The mounting bracket is attached.

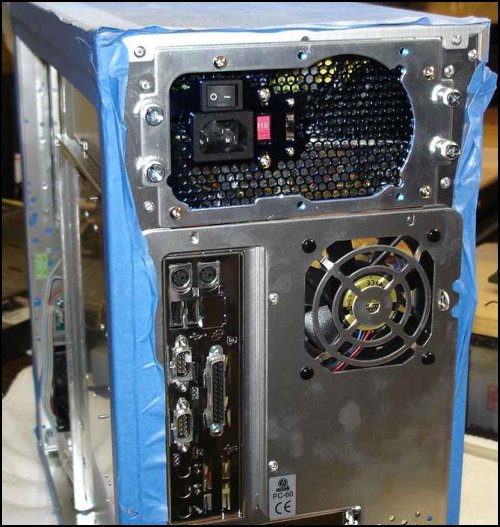

Installed into the tower.








This case comes with a USB port. Here
you see the wires hanging out of the case.

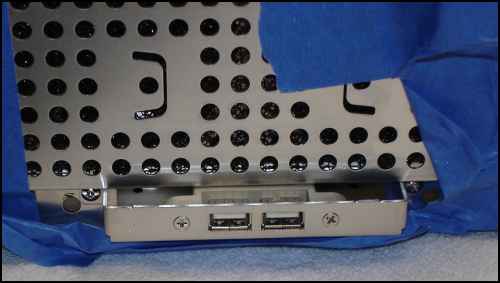

The USB port on the front of the computer. This mobo predates USB and I've removed to keep things clean.

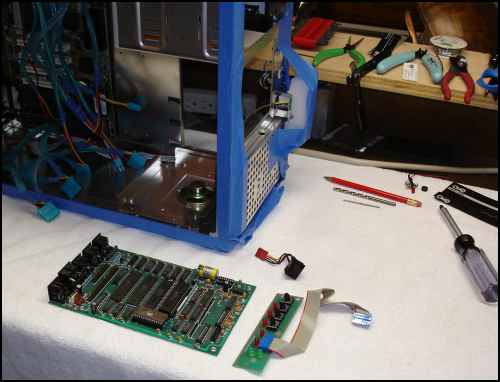

The next step; create a mount for the CMD HD PCB.
