November 1, 2005

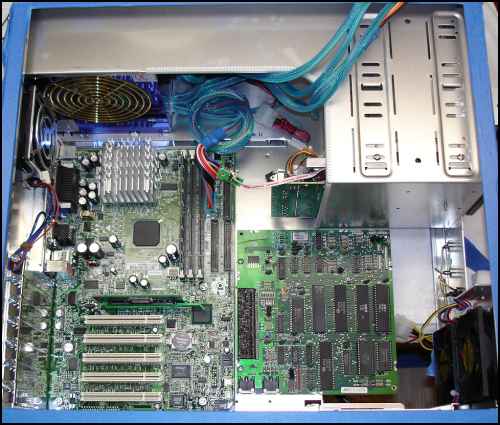

Alan sent a new, faster mobo so I
swapped it out; and relocated the 1541 PCB..

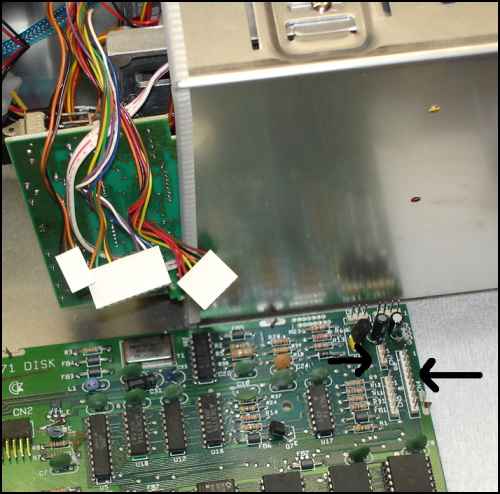

The drive connections need to be
extended to reach the headers on the PCB.

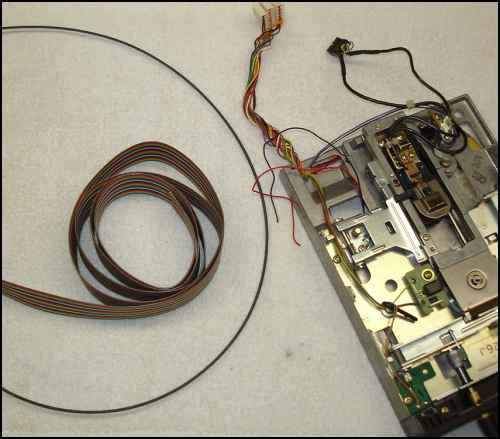

I picked up some ribbon cable
and some heat shrink insulation.

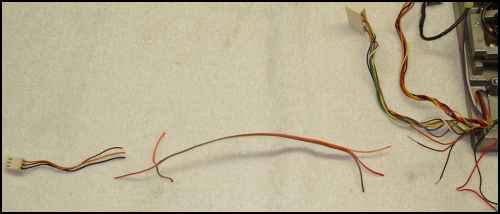

Here the cable is ready to assemble.

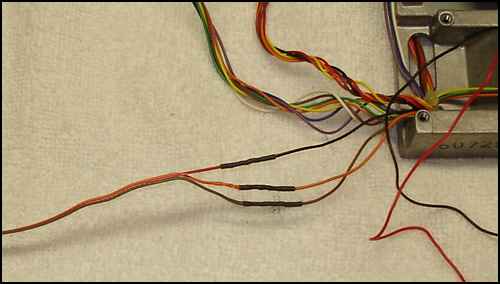

One side done.

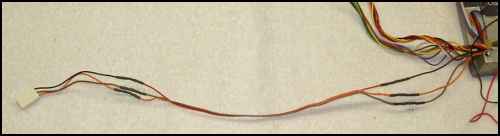

And the other side.
Only 27 more to go; for this drive.
