May 21, 2005

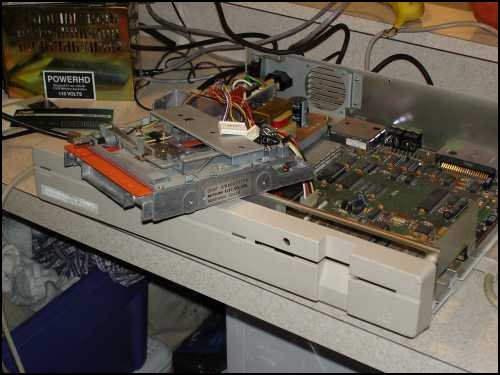

Well, it's almost decided the 1571 will be
removed. The 128D's owner, Ray, has two
external 1571s, so it won't be missed.








These are the holes that needs to be filled.








The FD 2000 isn't wide enough
to completely fill the 1571's slot.








And the HD Controller doesn't
cover the slot either; but comes closer.






Thanks to Maurice Randall of
Click Here Software Co.,
I have some decals to use in the project.
But they're still not wide enough.


We need to support the business that support
our computers. I have no affiliation with Click Here.












And there is still the recess used
to grab the 5 1/4 floppy to deal with.








The decal from the white line up is
just wide enough to cover the recess.








The decal could be folded over the face of
the 128D and the Zip drive installed below
it. The owner will make the call.








A couple of quick photochops
of what it might look like.
