June 1, 2005
This is the case from the HD. I'll
use the bottom half of it to mount
the HD PCB.

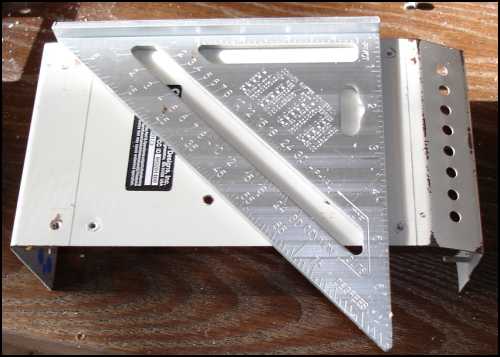

First I'll square off some lines
to cut out the desired section.

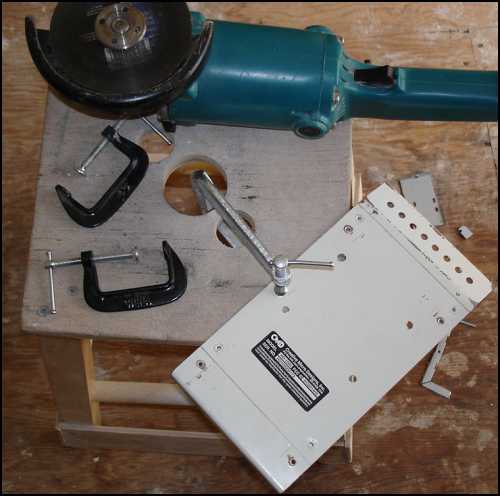

Ready to cut.

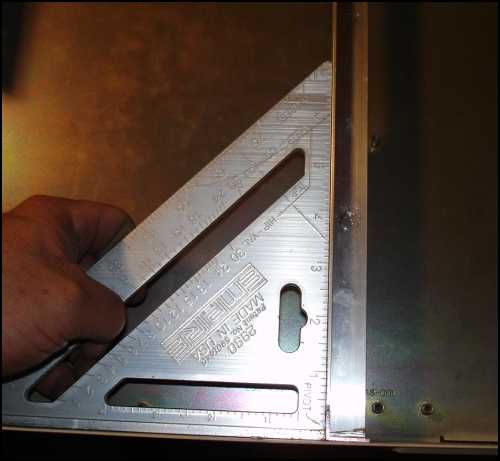

With the first end attached,
I'll square it up and attach the
other end of the mounting rail.

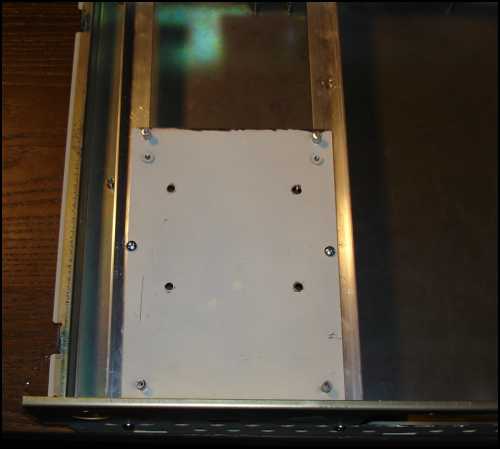

Here you see both rails attached,
and the HD base screwed in place.

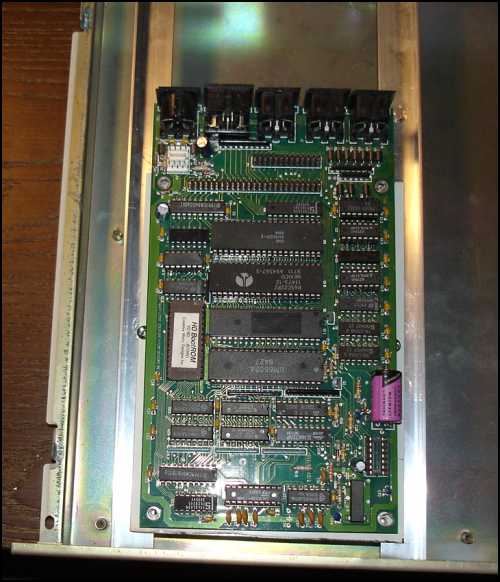

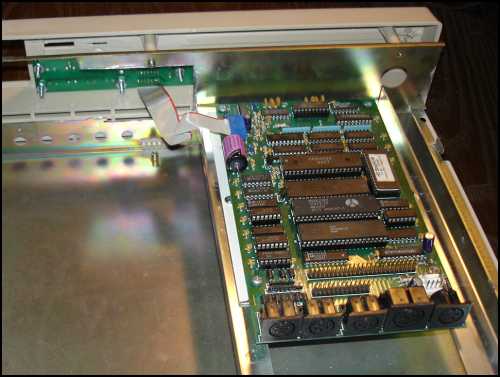

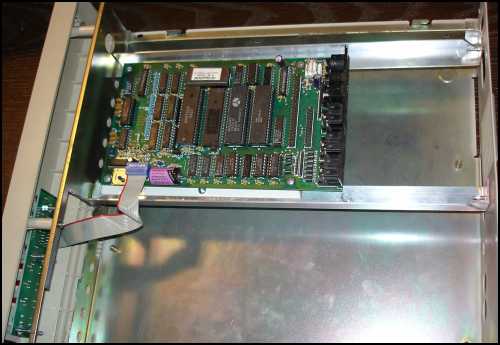

The HD PCB screwed down in place.
