June 11, 2005

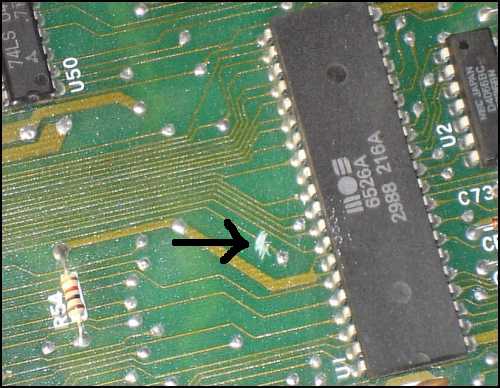

Cutting this trace
disables the internal 1571.

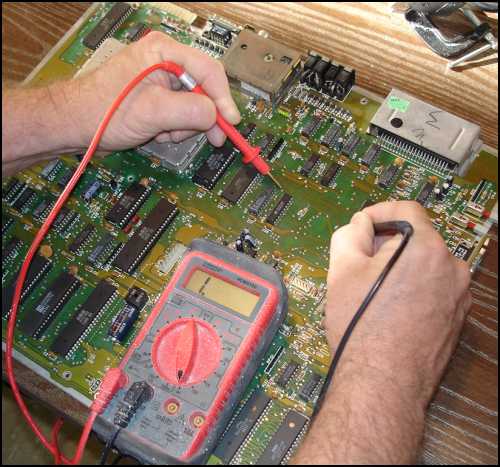

Checking to see if the trace is cut.

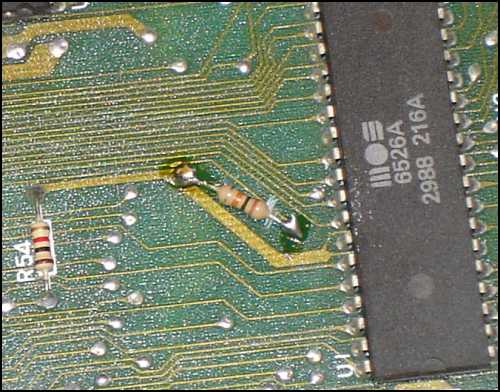

10K 1/4 watt resistor installed.
For more info on this see
this
page.
Scroll to the bottom of the page.

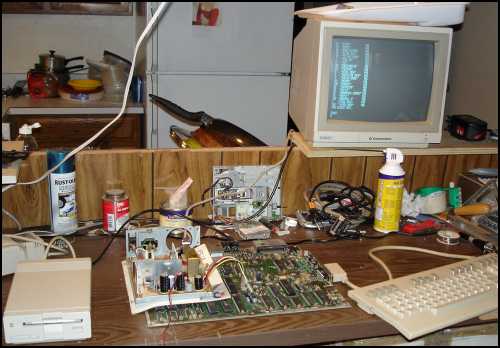

Testing. All is well.

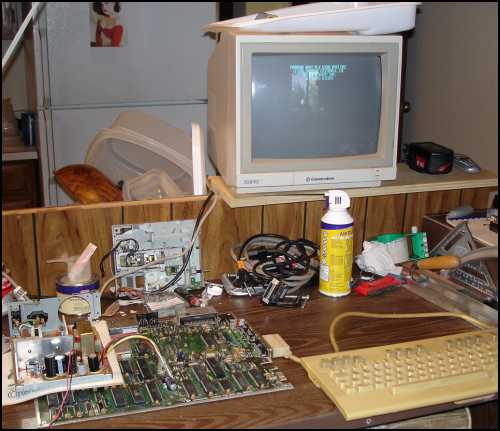

I hooked up a 1581 and
it is recognized as device 8.

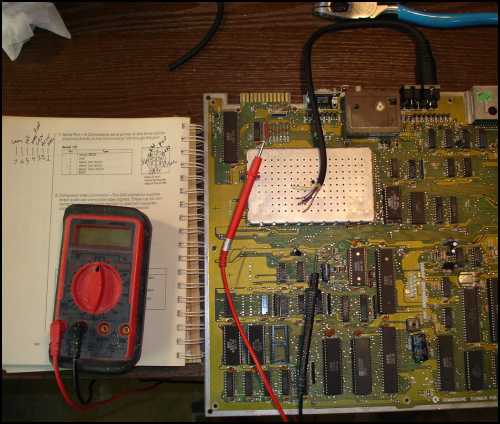

Here I'm looking for a way to extend
the serial bus internally to connect
the newly added drives. So far no
joy, but I come up with something.
Back to the Index Page
Forward to June 12, 2005
