Savannah Setup







The Savannah workspace.

On the left is the customized server
case containing the two computers.

Click on image for larger version.










The dual AMD runs
the two left monitors.

The P4 runs the right one.

Click on image for larger version.











The dual AMD lives in the left side;
the P4 lives on the right half.

Click on image for larger version.











I added the handles.

The right hand door had a lip
that went under the left door,
so the left door could lock both.

I removed the lip. Now, both
doors open independently.










P4 on the upper left.
Dual AMD, lower right.

Click on image for larger version.













The Dual AMD need the fans located close to the CPUs. A total of six fans blowing out of the back. Two power supply fans, four regular fans.

Click on image for larger version.













The blue on the back of the doors is
AC air filter material. All incoming air goes though it.

On the left is the Dual AMD 2000+.
On the right, the P4 4.2/533.

Click on image for larger version

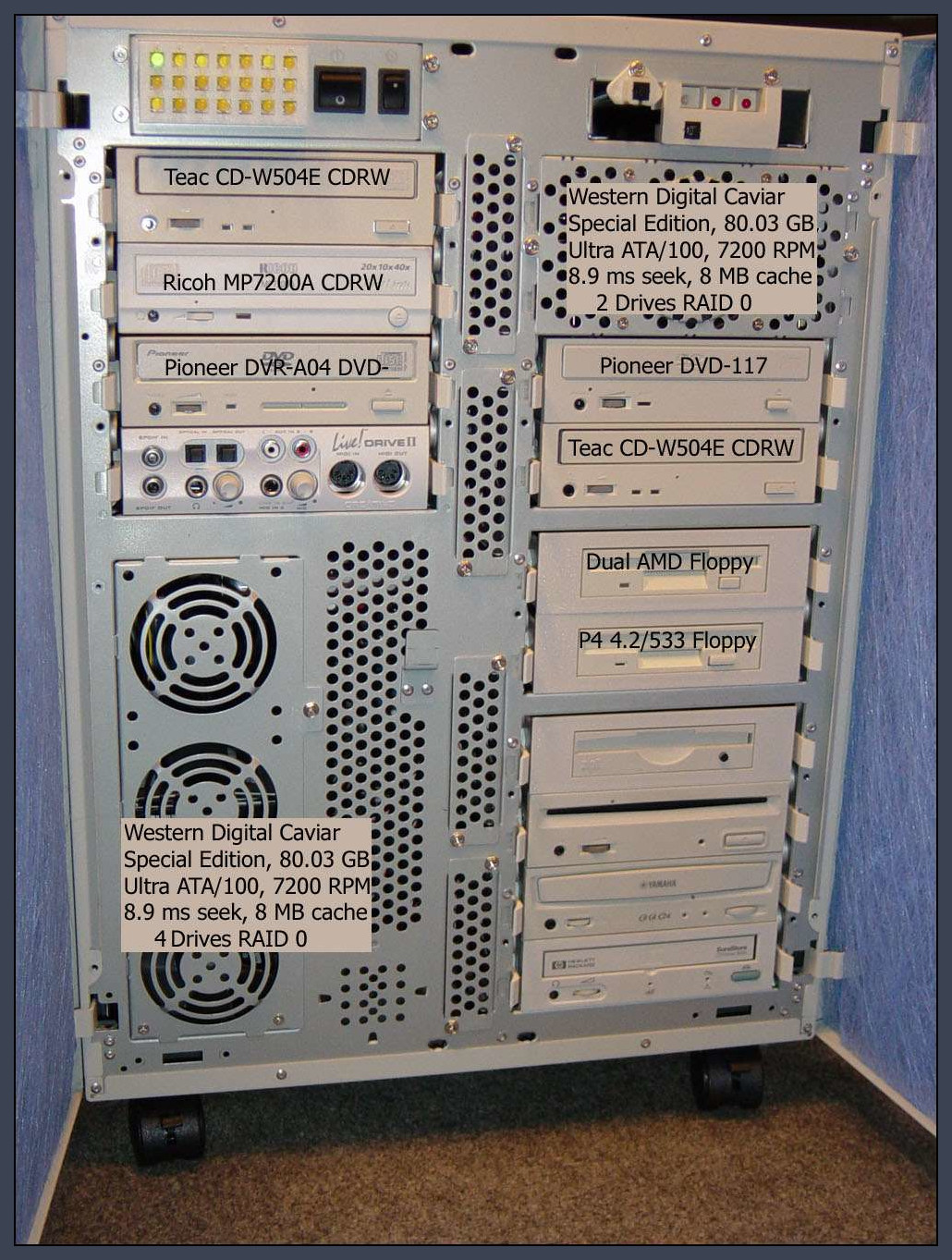

with the drives labled.








MSI K7D MASTER-L Dual AMD 2000+

2x Micron CT6472Y265 512 MB DDR PC2100 Registered ECC (1gig)
MATROX PARHELIA 128MB DVI/TV RT

3WARE Escalade 7500-4, four channel Ultra ATA RAID

4 WD Caviar Special Edition, 80.03 GB, Ultra ATA/100, 7200 RPM, 8.9 ms seek,
8 MB cache

Sound Blaster Live CT4760

PC Power & Cooling 475W ATX

Click on image for larger version.








Vantec
CopperX Cooler

38 fins, 384 gm.

60mm to 80mm adaptor.

Sunon ball bearing, 36 CFM













3WARE Escalade 7500-4, four
channel Ultra ATA RAID

WD Caviar Special Edition, 80.03 GB, Ultra ATA/100, 7200 RPM, 8.9 ms seek,
8 MB cache

Rubber feet on the drive cage.










I'll probably go with RAID10
when I put it in real use.








Abit IT7-MAX2 845E P4(533FSB)

Pentium 4 2.4GHz (Northwood) 533Mhz

MSI G4 Ti 4200-TD GeForce4 128MB DDR.

Corsair CMX512-3200C2 512MB 64Mx64 184 DIMM Unbuffered Cas2

Highpoint 374 UltraATA RAID0 using
2 WD Caviar Special Edition, 80.03 GB, Ultra ATA/100, 7200 RPM, 8.9 ms seek,
8 MB cache

Using onboard AC3 5.1 audio for now.

Click on image for larger version.










Shot of the drives. Two WD drives
at the top. A CDRW and DVD drive
below that.

At the bottom are some older SCSI CDROMs, not hooked up at present.
My scanner is SCSI, so an Adaptec
2940 is installed. I may or may not
use the SCSI CDROMs and burners.










Fan to cool drives.
