October 21, 2005

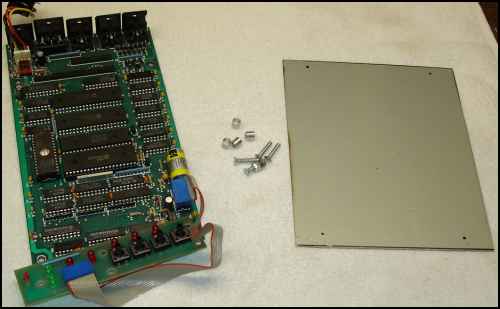

Today's project; make the
mounting plate for the CMD HD PCB.
Drill the holes and countersink the bottom side.

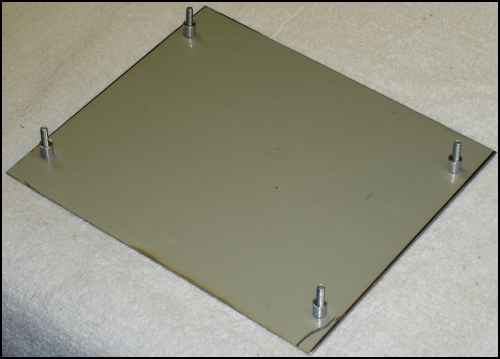

The plate with the bolts ready for the PCB.

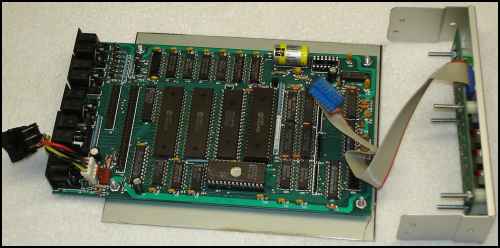

The PCB and switch board mounted.

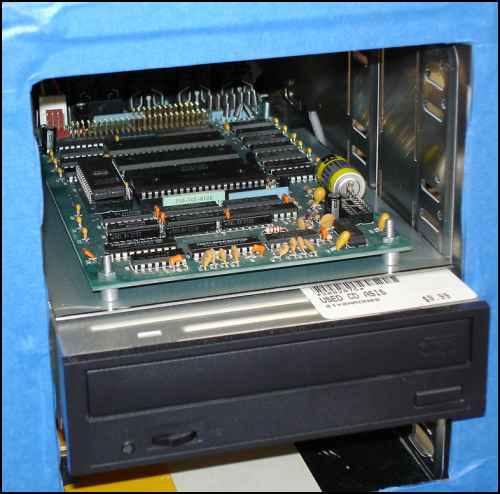

Home in the case.

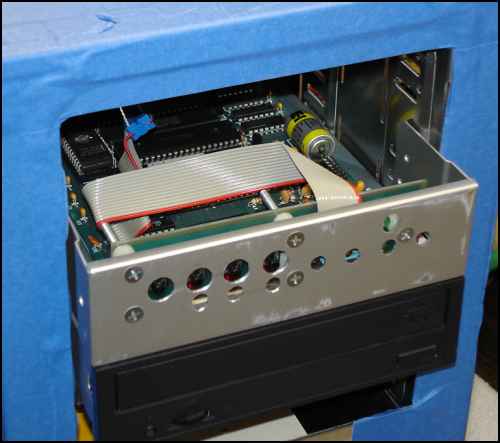

The switch board in place. It's
upside down, but it's just a test.

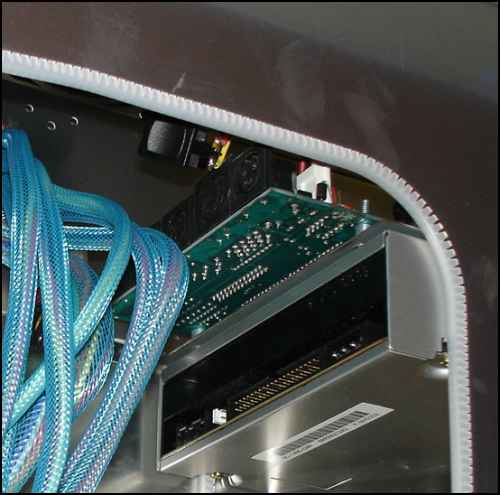

A view from inside the case.
