October 9, 2005

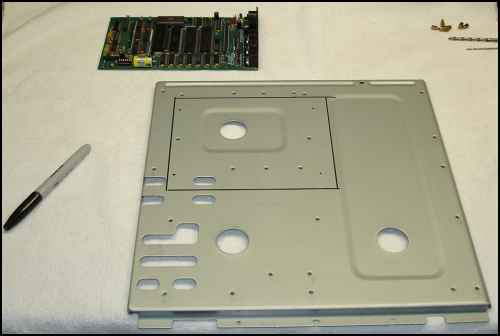

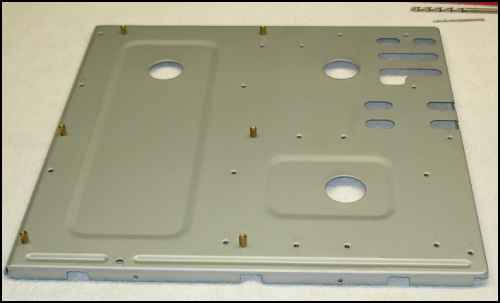

This is the back plane from the old case. It
might make the part I need for mounting the PCB.
The cut lines are laid out. But wait...

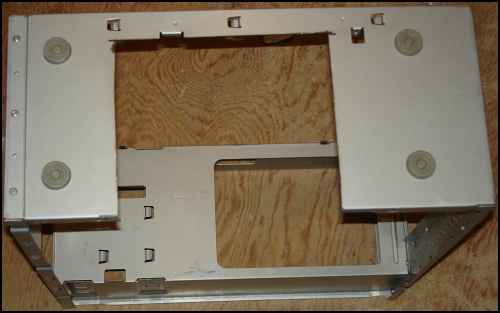

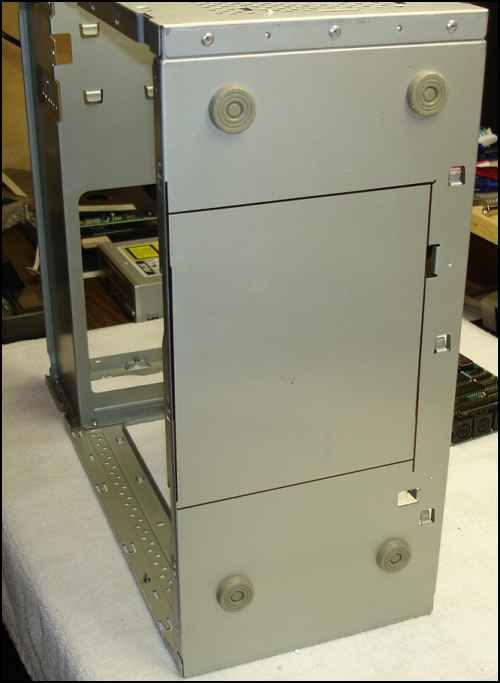

The bottom of the old case offerers a flat section.
The RotoZip striks again.

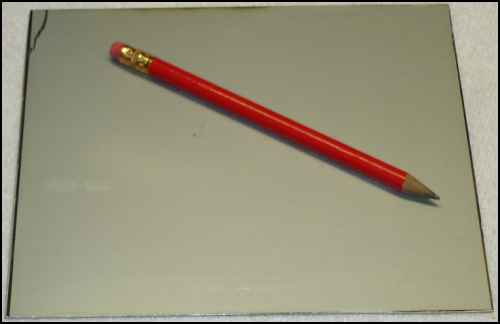

The mounting plate.

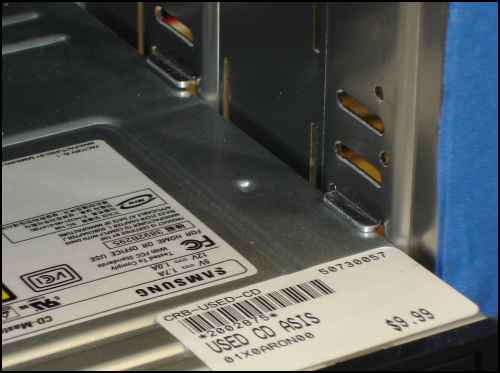

The plate is going to sit on the tabs in the 5.25 bay.

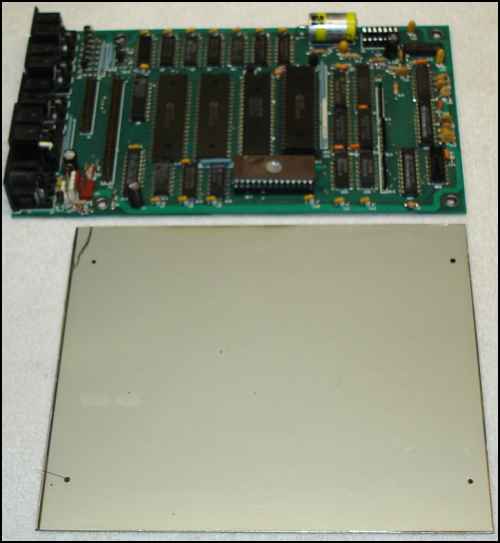

The mounting holes are laid out.

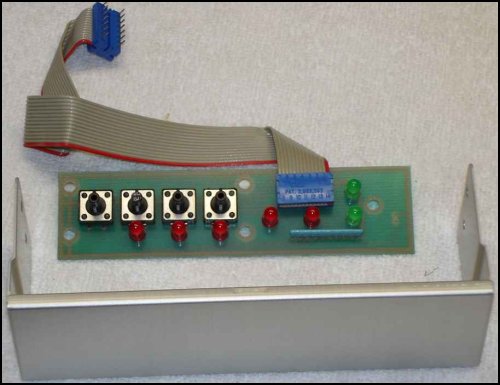

The HD controller mounts to a blank face plate,
and is finished with a new decal from Maurice.
All that and more on the next update.
